Description

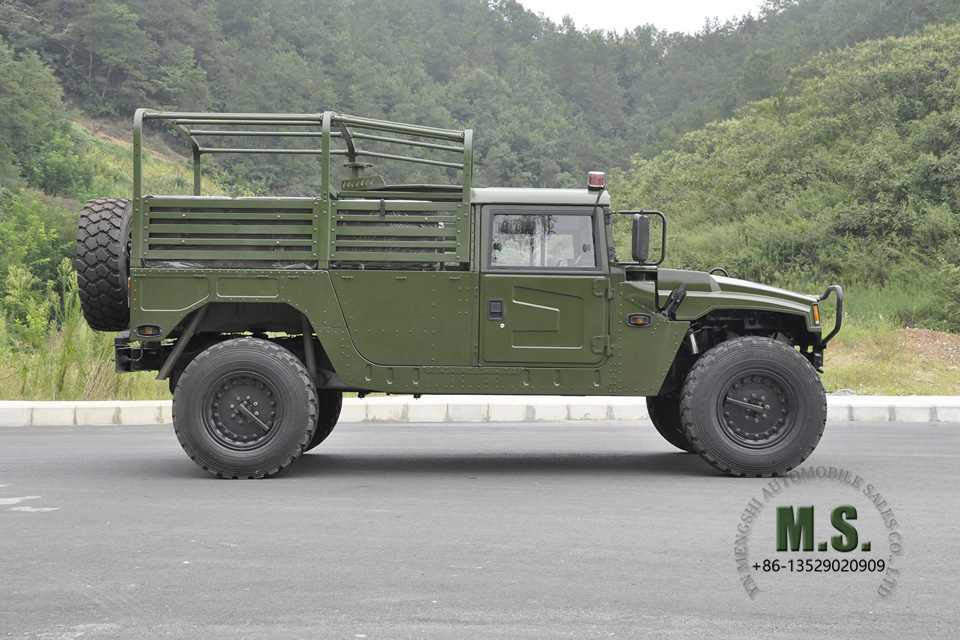

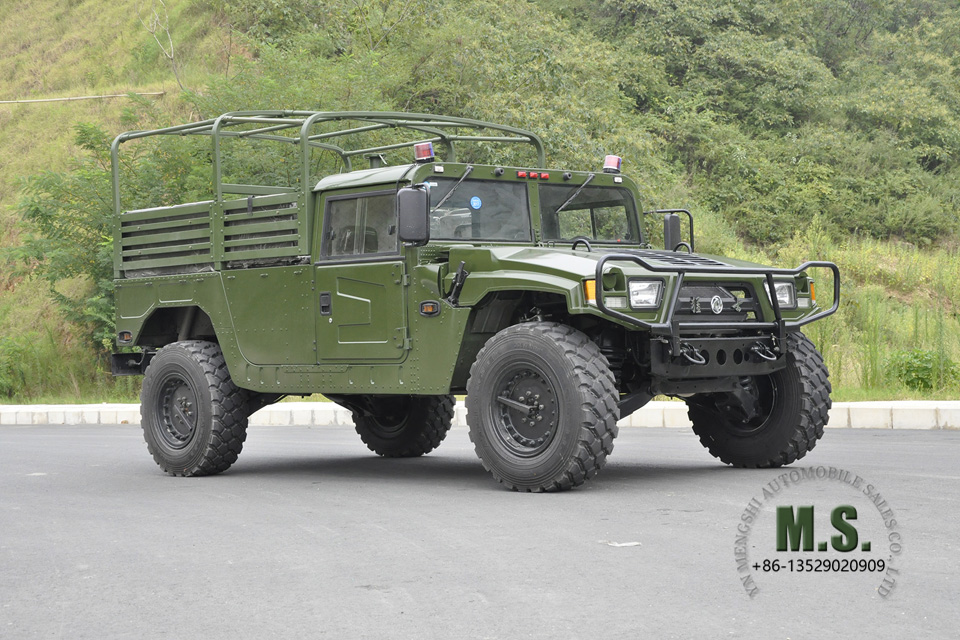

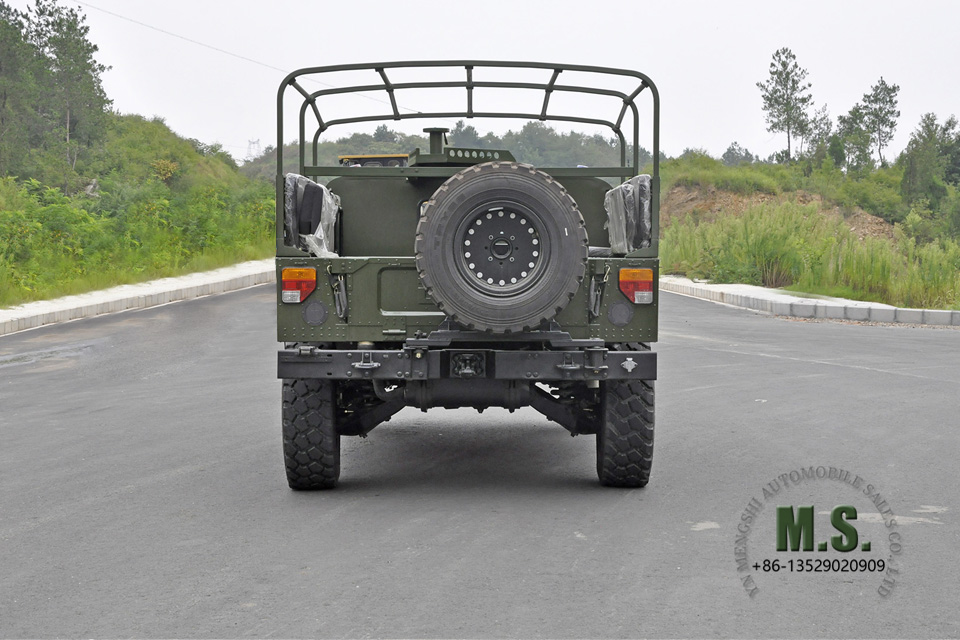

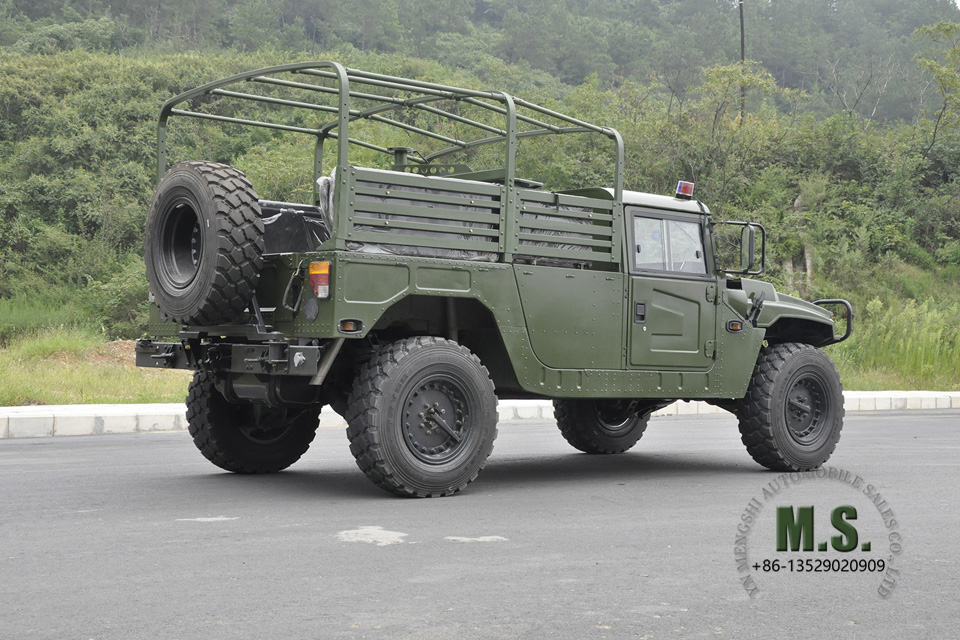

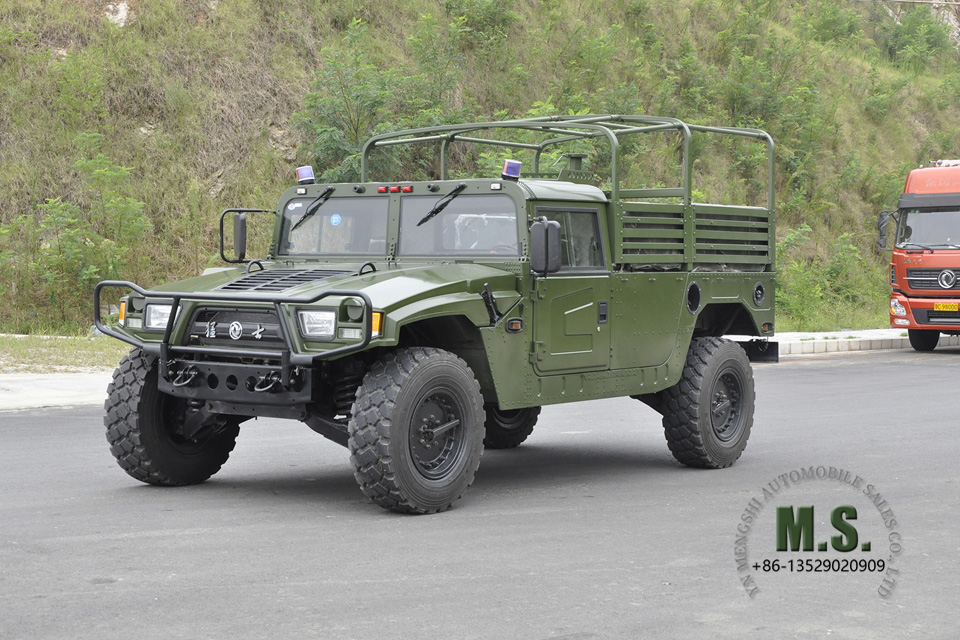

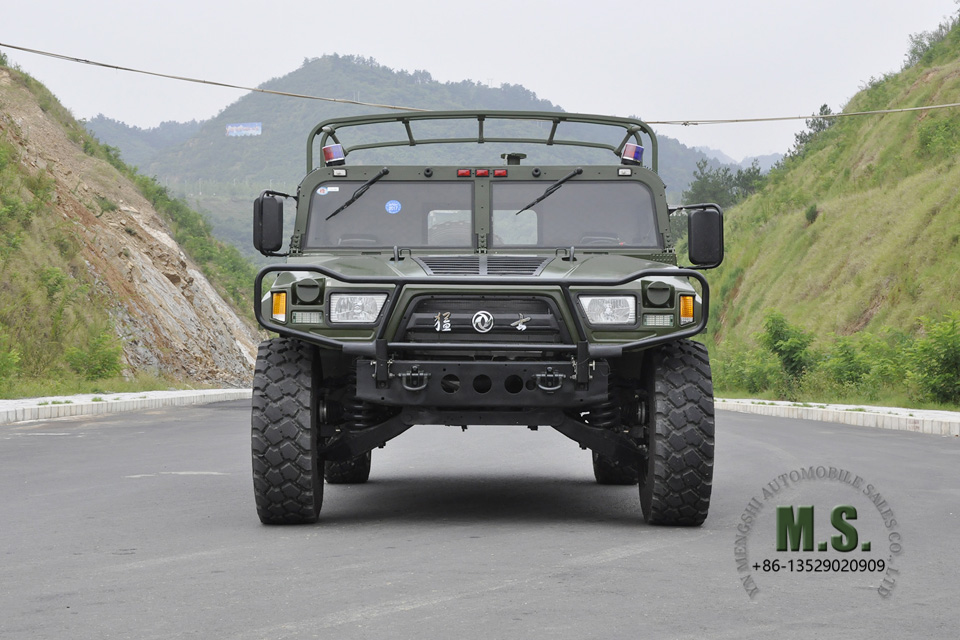

Dongfeng EQ2050 Series 1.5-ton high mobility off-road vehicle, the series model is changed to full-time four-wheel drive, with high mobility, high off-road, multi-purpose and other characteristics.
Main Assembly | |
Cab | Single Row |
Engine | Cummins EQB150-20 |
Gearbox | Manual Five Speed |
Transfer case | All-time four drive, high-low two speed |
Axle | 1.5 T/3.5 T |
Tire | 37×12.5R16.5LT Off-road Special Tire |
Suspension | Double cross arm independent suspension |
Electric circuit | 24V circuit system |
Basic Parameter | |
Drive | 4*4 |
Overall Dimension (length×width×height) (mm) | 4717*2210*2485 |
Curb Weight(kg) | 3250 |
GVW(kg) | 5000 |
Wheelbase (mm) | 3300 |
Passengers(persons) | 2 |
Approach /Departure Angle(°) | 70°/45° |
Performance Parameter | |
MAX.Speed (km/h) | 105 |
MAX.Obstacle Clearance (mm) | 450 |
Minimum ground clearance(mm) | 410 |
MAX.gradeability (%) | 60 |
Minimum turning radius(m) | 7.5 |
Fuel Tank Capacity (L) | 76+39 |
Optional | Electric winch, communication radio, tire inner support, wading auxiliary device, cold and warm double temperature automatic air conditioning |
Note: This configuration is for reference only, the actual parameters are subject to the actual vehicle.
Description
Dongfeng EQ2050 Series 1.5-ton high mobility off-road vehicle, the series model is changed to full-time four-wheel drive, with high mobility, high off-road, multi-purpose and other characteristics.
Main Assembly | |
Cab | Single Row |
Engine | Cummins EQB150-20 |
Gearbox | Manual Five Speed |
Transfer case | All-time four drive, high-low two speed |
Axle | 1.5 T/3.5 T |
Tire | 37×12.5R16.5LT Off-road Special Tire |
Suspension | Double cross arm independent suspension |
Electric circuit | 24V circuit system |
Basic Parameter | |
Drive | 4*4 |
Overall Dimension (length×width×height) (mm) | 4717*2210*2485 |
Curb Weight(kg) | 3250 |
GVW(kg) | 5000 |
Wheelbase (mm) | 3300 |
Passengers(persons) | 2 |
Approach /Departure Angle(°) | 70°/45° |
Performance Parameter | |
MAX.Speed (km/h) | 105 |
MAX.Obstacle Clearance (mm) | 450 |
Minimum ground clearance(mm) | 410 |
MAX.gradeability (%) | 60 |
Minimum turning radius(m) | 7.5 |
Fuel Tank Capacity (L) | 76+39 |
Optional | Electric winch, communication radio, tire inner support, wading auxiliary device, cold and warm double temperature automatic air conditioning |
Note: This configuration is for reference only, the actual parameters are subject to the actual vehicle.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
